AnCam® 6200
Multi-Analyte Test Reader
The AnCam® 6200 is a versatile, portable reader and communication device for single- and multi-target lateral flow immunoassay (LFA) tests. Machine-vision analysis replaces subjective visual reads—improving sensitivity, consistency, and reliability in the field.
An integrated Android® engine provides GPS tagging, on-device image/data archiving, and cellular/Wi-Fi reporting. The system can warn early on strong positives, flag defective assay tickets, and is readily updated for new, higher-sensitivity assays.
Already using an AnCam™ 6100?
See how the new AnCam® 6200 compares.
Compare Models
Product Features
Reads single- and multi-target assay tickets
Machine-vision algorithms for consistent day/night results
Early-warning alert on strong positives (often < 5 minutes)
Detects defective or out-of-spec assay tickets
Compatible with new high-sensitivity assay tickets
Integrated GPS; archives images, results, time, and location
Cellular/Wi-Fi reporting; optional Bluetooth®/Wi-Fi® printing
Rechargeable/removable battery: up to ~60 readings/charge
Adaptable assay/protocol library; obsolescence-resistant
Product Applications
Field detection of bioterrorism threat agents
Medical pathogens
Drugs of abuse
Food safety
Veterinary testing
Environmental testing
Key Specifications
Analysis modes: single read or tracked incubation
Previously incubated coupons: results in seconds
Live incubation: per coupon spec (typically ~15 min)
Early alarm possible as soon as ~5 minutes on strong positives
Size/Weight: ~178 × 82.6 × 97 mm; ~600 g
Operating range: above 0 °C to 50 °C
Power: rechargeable/removable Li-ion; ~60 assays/charge
Archival: images, GPS, time, user ID, ticket info to internal/SD
Upgrading from the AnCam™ 6100
The AnCam® 6200 builds upon the proven capabilities of the AnCam™ 6100 while introducing a modern Android platform, enhanced portability, future-ready assay support, and expanded software capabilities.
| Feature | AnCam™ 6100 | AnCam® 6200 |
|---|---|---|
| Primary Function | Automated lateral flow assay reader | Automated lateral flow assay reader |
| Compatible Assays | Most commercial 1-, 5-, and 8-analyte LFA coupons | Current assays plus support for future assay libraries |
| Quantitative Analysis | Qualitative and quantitative (with calibration) | Single measurement and tracked incubation modes |
| Early Positive Detection | Approximately 5 minutes | Approximately 5 minutes |
| Tracked Incubation | Yes | Yes |
| Previously Incubated Tests | Results in seconds | Results in seconds |
| Defective Ticket Detection | Yes | Yes |
| GPS Logging | Yes | Yes |
| Automatic Archiving | Images, GPS, timestamps, user ID | Images, GPS, timestamps, user ID |
| Data Transmission | Cellular, Wi-Fi, Bluetooth | Cellular, Wi-Fi, Bluetooth |
| Printing | Bluetooth / Wi-Fi | Bluetooth / Wi-Fi |
| Phone Platform | Customized smartphone | Modern Android platform |
| Software Expandability | Fixed platform | Adaptable assay library |
| Future Assay Support | Not emphasized | Designed for future assay libraries |
| High-Sensitivity Assays | No | Yes |
| Future Detection Improvements | — | Supports future assays with up to 10× improved detection potential |
| Obsolescence Resistance | Not specified | Designed for long-term lifecycle support |
| Battery | Internal Li-Ion | Removable rechargeable Li-Ion battery |
| Battery Life | 5–10 day standby | Approximately 60 assays per charge |
| Dimensions | 205 × 121 × 109 mm | 178 × 82.6 × 97 mm |
| Weight | 1,280 g | 600 g |
| Operating Temperature | 0–50 °C | >0–50 °C |
| Portability | Good | Excellent |
| Ease of Deployment | Moderate | High |
| Technology Generation | Mature platform | Current-generation platform |
Accessories & Consumables
Replacement parts and consumables are available for this product. Tip: click/tap an image to select or deselect. Use the arrows (or swipe) to see more. Selected items will be included in your quote.
AnCam 6200 Eight-Channel Ticket Tray — P/N 7100-180-041-02
AnCam 6200 Five-Channel Ticket Tray — P/N 7100-180-037-02
AnCam 6200 Single-Channel Ticket Tray — P/N 7100-180-035-02
USB Power Communications Cable — P/N 7200-180-105-01

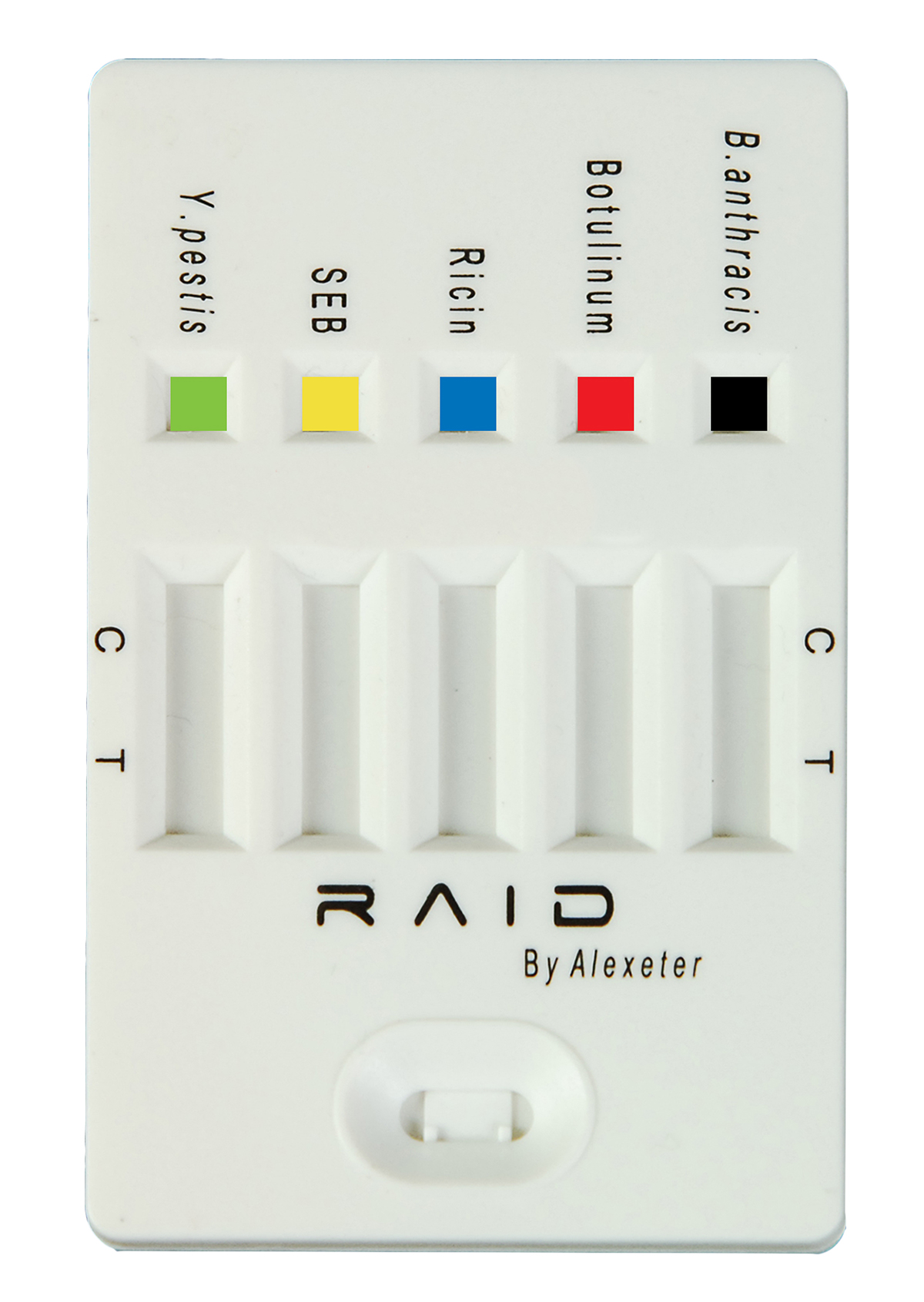

Trainer RAID-5 — P/N 1670-0500-00
RAID-5 Test Strip — P/N 1670-0500-01

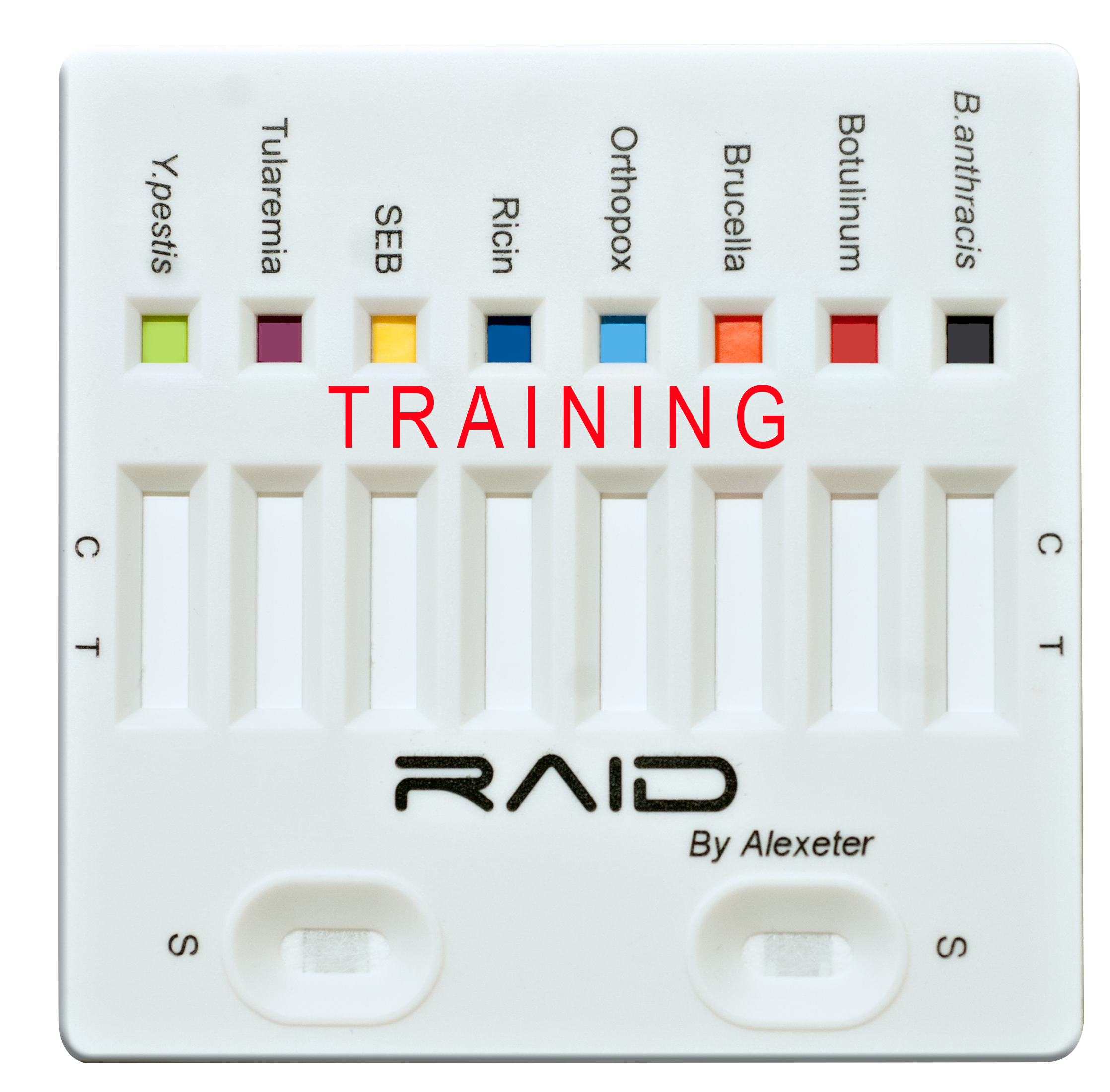

Trainer RAID-8 — P/N 1670-0800-00

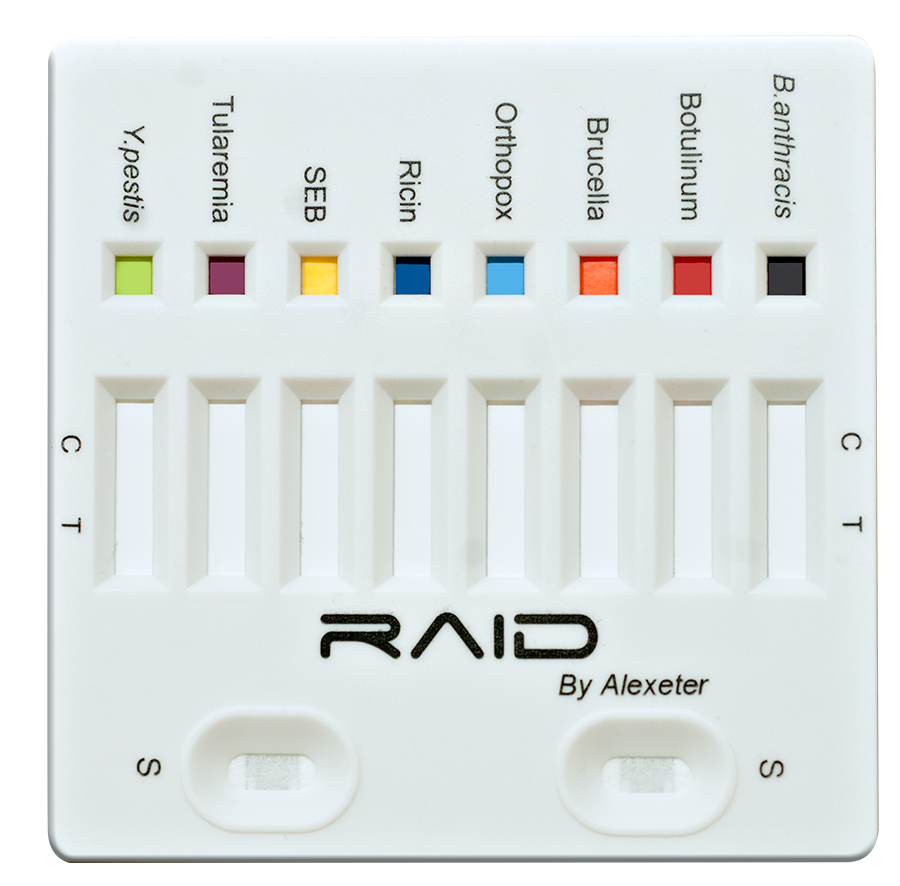

RAID-8 Test Strip — P/N 1670-0800-01
Anthrax Kit (25/box) — P/N 1670-0001

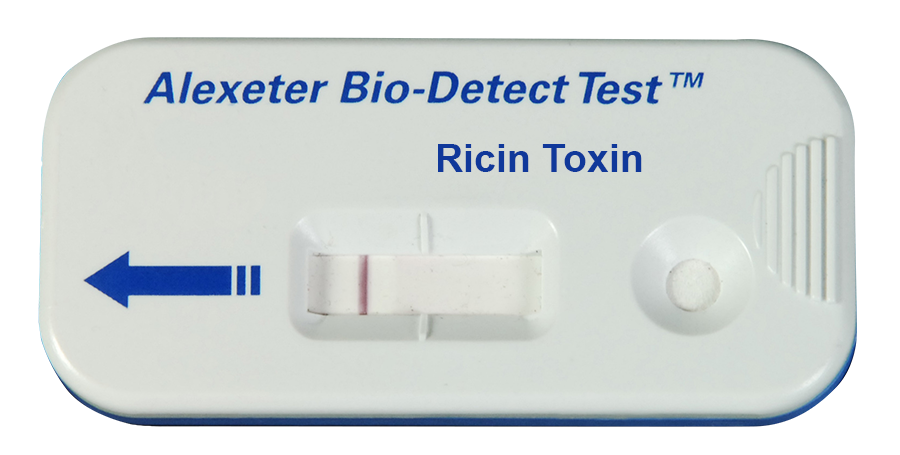

Ricin Kit (25/box) — P/N 1670-0002
Plague Kit (25/box) — P/N 1670-0003

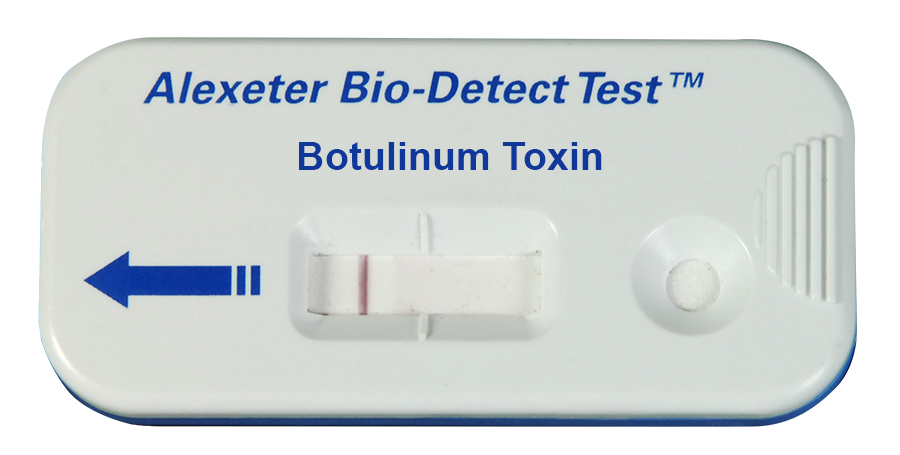

Botulinum Toxin Kit (25/box) — P/N 1670-0004
Brucella Toxin Kit (25/box) — P/N 1670-0005

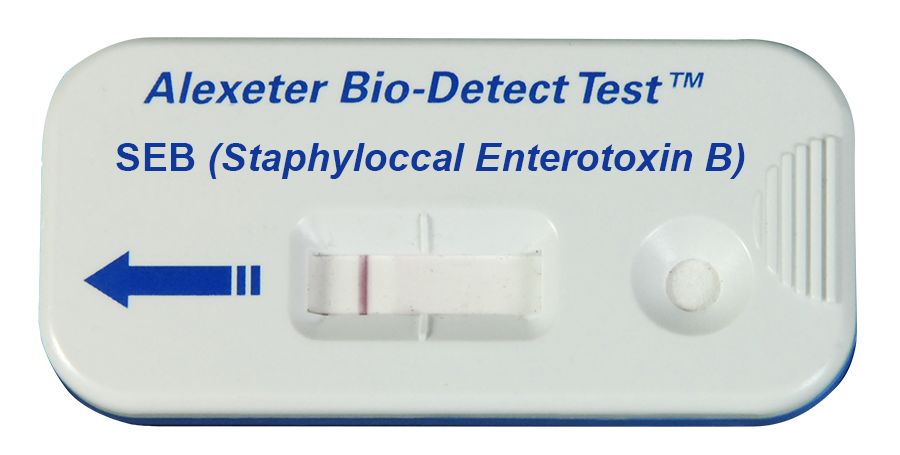

SEB Kit (25/box) — P/N 1670-0006

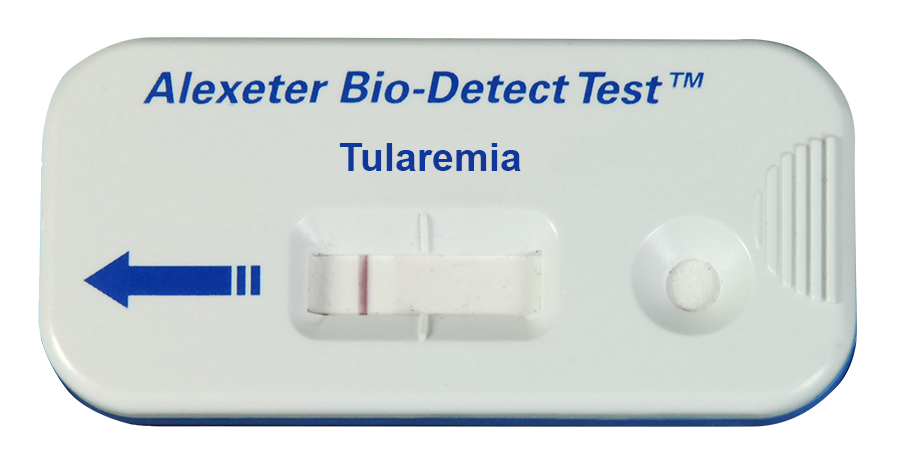

Tularemia Toxin Kit (25/box) — P/N 1670-0007

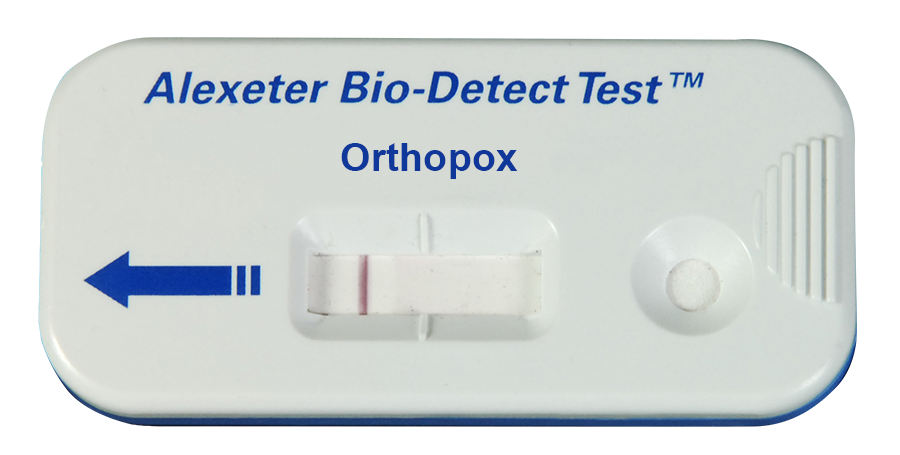

Orthopox Toxin Kit (25/box) — P/N 1670-0008

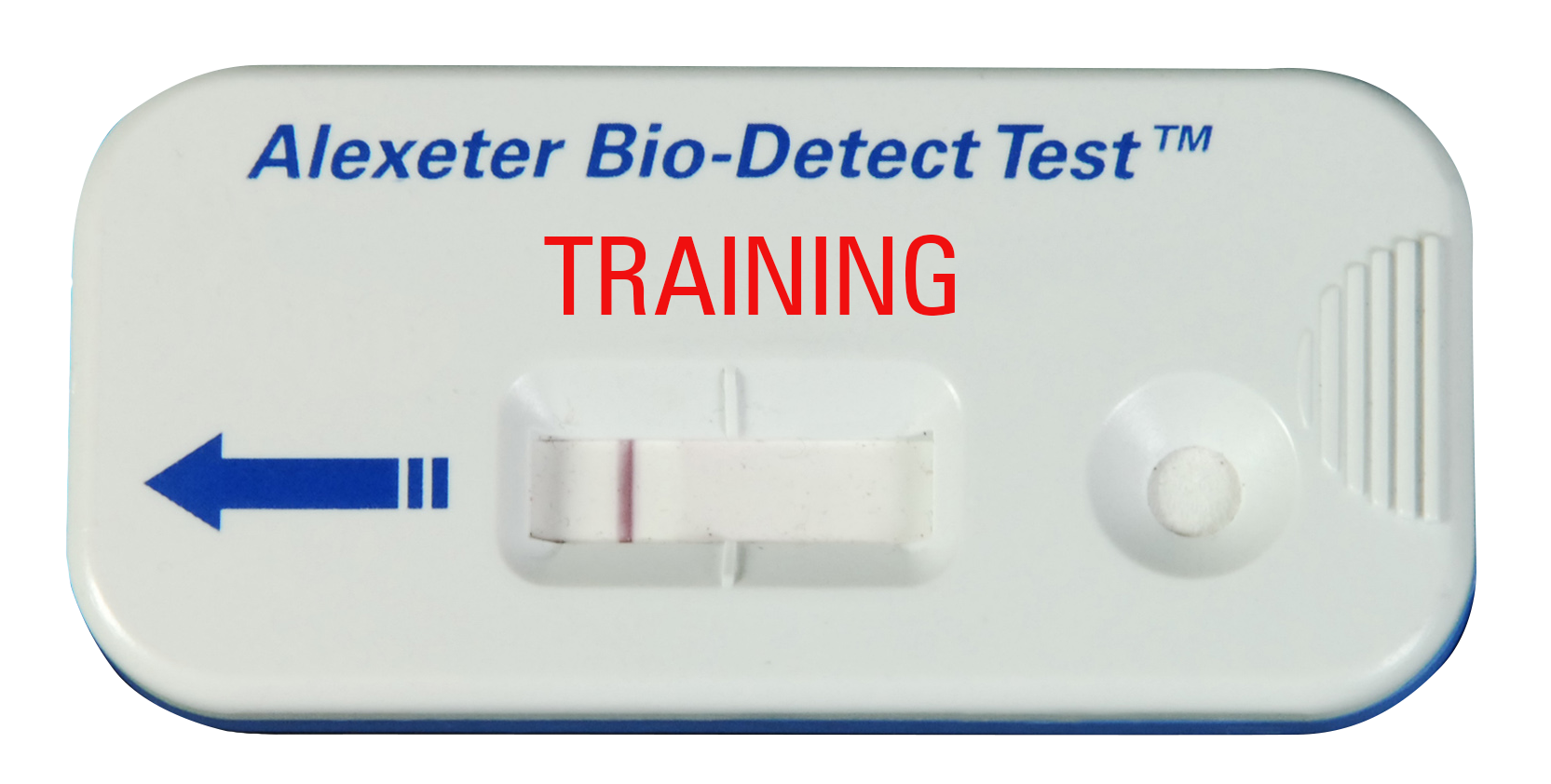

Trainer - SIngle Channel (20/box) — P/N 1670-0017-20
